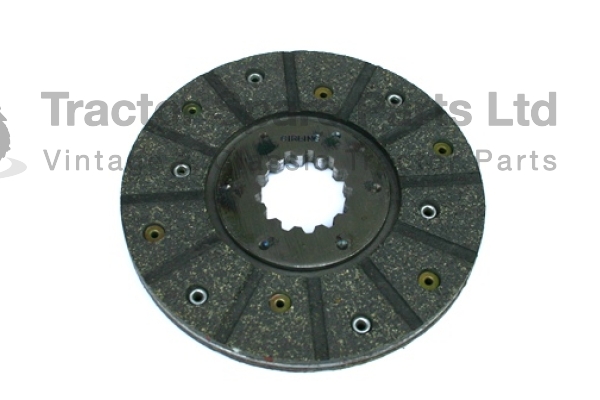

18G8283 - Leyland Brake disc
Fitted to the following tractors:

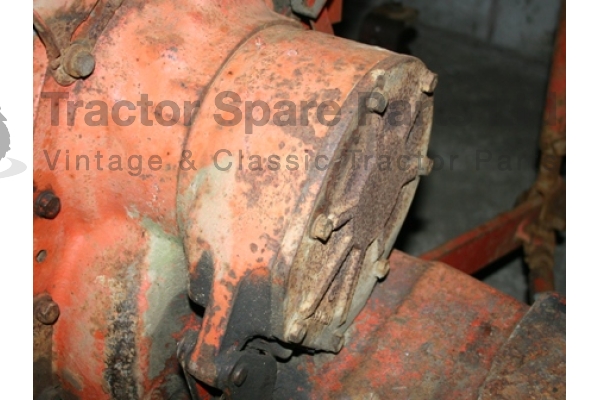

Nuffield 10/42, 10/60, 3/45, 4/65

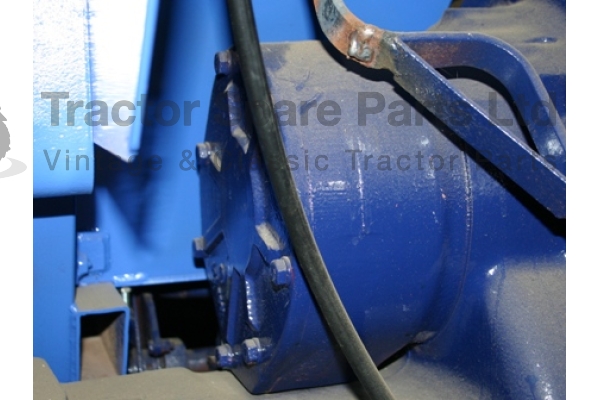

Leyland 344, 384, 253, 255, 270, 245, 262, 462, 272, 472, 282, 482
Riveted brake discs for Leyland tractors. Note: These are the same size as JCB brake discs, but they have a different material which is more suitable to the weight of the Leyland.
Note 4 per tractor, 2 in each brake housing (disc outside diameter 163mm).
It is recommended that when replacing the brake discs or brake linings that the brake actuator springs and balls are replaced. This will help minimise the chance of the brakes grabbing (locking) during operation.
If brakes continue to grab or the brake actuator is cracked, damaged or shows signs of excessive wear replace complete unit.

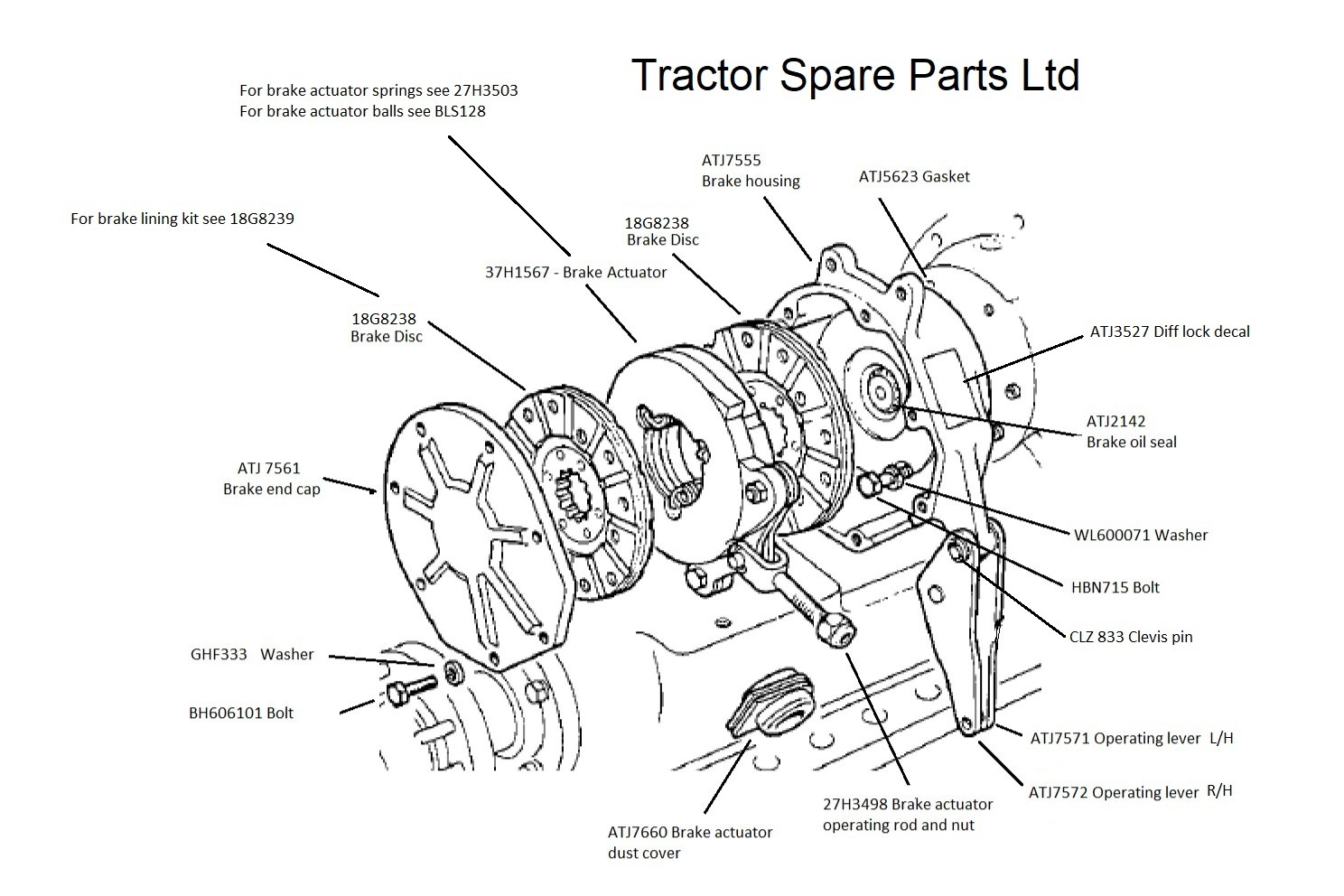

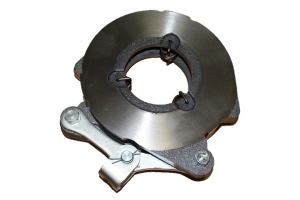

Brake actuator, part no 37H1567
Brake actuator spring, part no 27H3503 (3 per actuator)
Brake actuator ball, part no BLS128 (5 per actuator)
Original equipment manufacturers names and parts numbers are quoted for reference purposes only and are not intended to suggest that our replacement parts are made by the original equipment manufacturer.
Product images are for illustrative purposes only and may not always be an exact representation of the product.
