ATJ1020 - Layshaft bearing - fitted as front, centre and rear bearing - OD90mm ID50mm depth 20mm
Fitted to the following tractors:

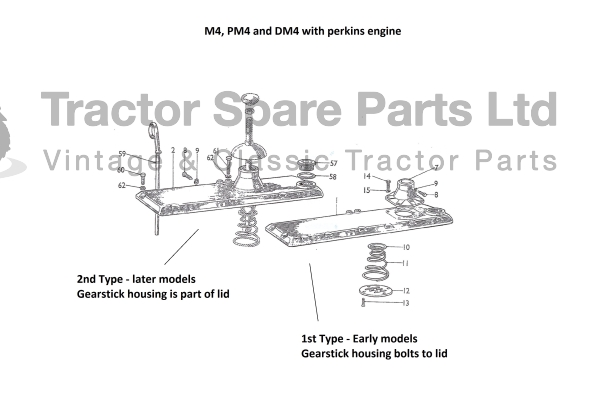

Nuffield M4, PM4, DM4, Note only used on 2nd type gearbox (see drawing to check)
Nuffield 3DL, 4DM, 342, 460, 10/42, 10/60, 3/45, 4/65
Leyland 344, 384, 253, 255, 270, (245 early models with 3 position gate)

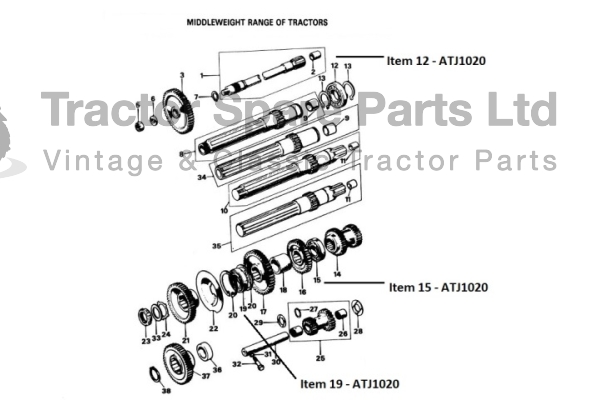

See diagrams
See GHB119 for 1st type gearbox bearing:
Original equipment manufacturers names and parts numbers are quoted for reference purposes only and are not intended to suggest that our replacement parts are made by the original equipment manufacturer.
Product images are for illustrative purposes only and may not always be an exact representation of the product.

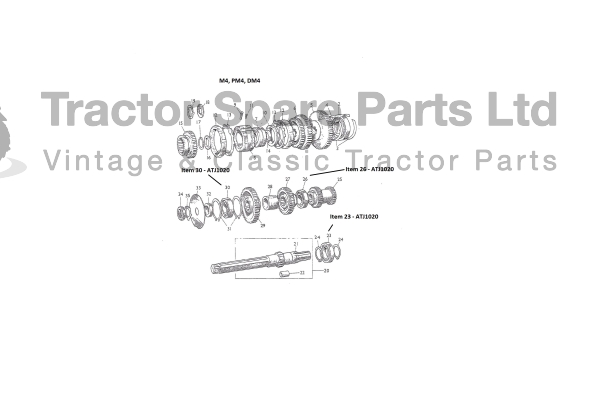

Open link to see larger diagrams for the 2 options on the M4, PM4, DM4 models
