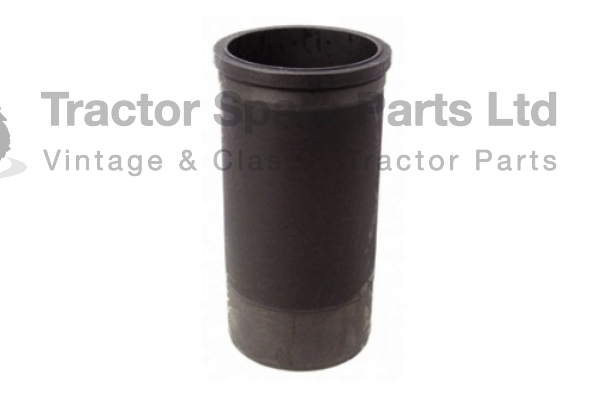

37D425 - Engine liner for BMC 2.8, 3.8 and 5.7Â engines

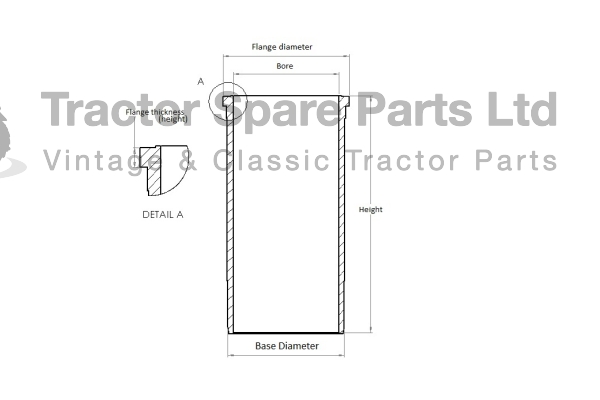

Bore size 100.025mm
Flange diameter 114.22mm
Flange height 11.18mm
Outside diameter where the liner seal contacts the liner 106.32mm
Overall height 221.50mm
Parts to suit this liner:
liner shim - AMK1970 (0.003")
liner seal - AMK61Â (not included with liner)
Piston - 37D426
Rings - AHM9025
Original equipment manufacturers names and parts numbers are quoted for reference purposes only and are not intended to suggest that our replacement parts are made by the original equipment manufacturer.
Product images are for illustrative purposes only and may not always be an exact representation of the product.
Important always check liner sizes before ordering,
if unsure please ring us for advice.
