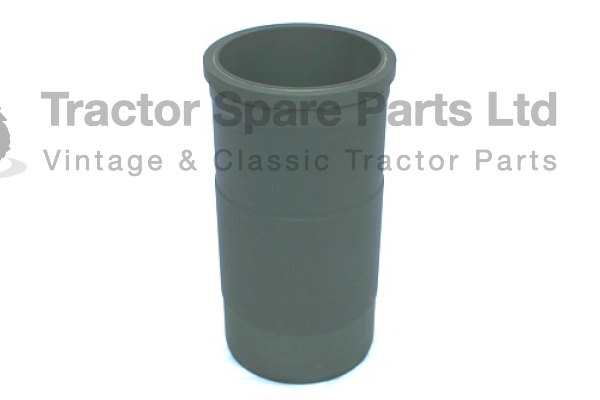

NKJ149 - Liner for Leyland 4/98TT, 4/98TV, 6/98 TT, 6/98TV engines. This liner is commonly known as the bubble liner.Â
Fitted to the following tractors:
Leyland 282, 482
Marshall 602, 604, 702, 704, 802, 804, 904XL, 100, 115, 125
Also fitted to JCB 3CX, , JCB 140, JCB 520, 525, 530 engines.

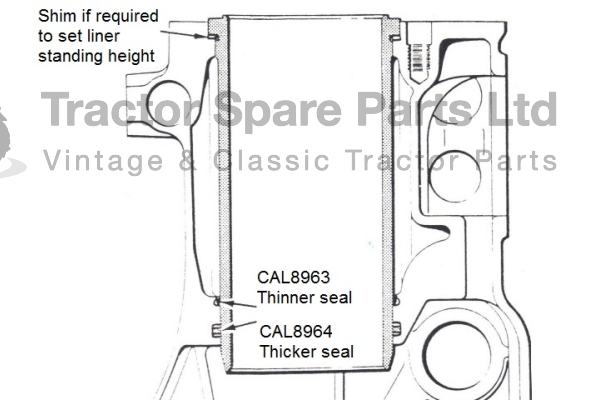

Top seal ring part no CAL8963
Bottom seal ring part no  CAL8964
Bore size 98mm
Flange diameter 117.05mm
Flange height 8.90mm
Outside diameter where the liner seal contacts the liner 108.25mm
Overall height 218.30mm
Original equipment manufacturers names and parts numbers are quoted for reference purposes only and are not intended to suggest that our replacement parts are made by the original equipment manufacturer.
Product images are for illustrative purposes only and may not always be an exact representation of the product.
Important always check liner sizes before ordering,
if unsure please ring us for advice.
Use the following liner shims for this liner - 89J88 (0.003"), 89J89 (0.004"), 89J90 (0.005" and 89J91 (0.010").
Other parts to suit NKJ149 liner:
Piston:
96K570 (five ring piston)
96K471 (four ring piston)
Ring set:
AHM9014 (five ring piston)
AHM9072 (four ring piston)
