TRS1216 - O-ring oil pump and diff lock

£0.69 exc VAT

Need it delivering elsewhere? Click here

Delivery Information Returns Information

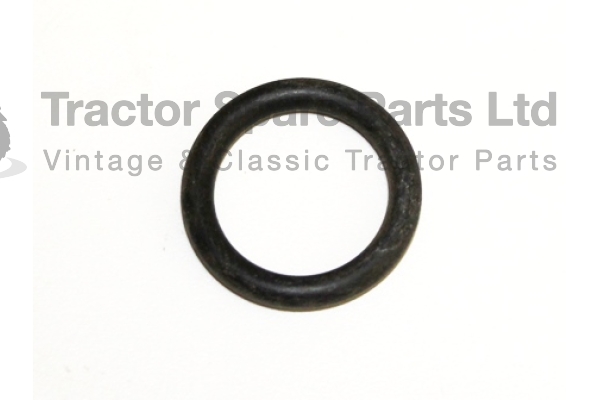

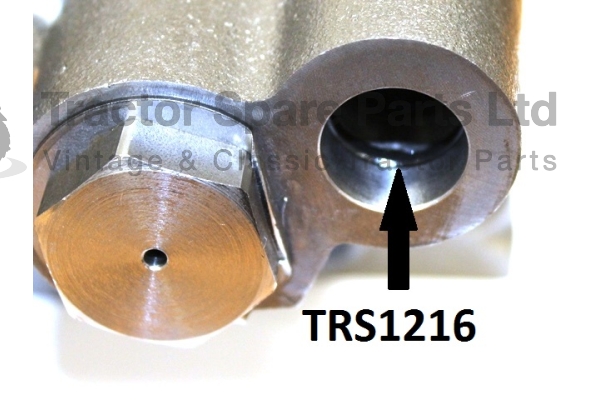

TRS1216 - O-ring used on the pressure outlet on oil pumps 13H3391, 86K1583 and 86K1585.

Fitted to the BMC 3.4, 3.8, 5.1, 5.7 and Leyland 4/98, 6/98 engines.

Fitted to the following tractors:
Nuffield 3/45, 4/65
Leyland 344, 384, 255, 270, 262, 462, 272, 472, 282, 482, 285, 485, 2100, 4100
Leyland 602, 604, 702, 704, 802, 804
Marshall 602, 604, 702, 704, 802, 804, 904XL

TRS1216 is also fitted as a seal on the diff lock lever shaft.

Fitted to the following tractors:
Nuffield 3DL, 4DM, 342, 460, 10/42, 10/60, 3/45, 4/65
Leyland 344, 384, 255, 270, 262, 462, 272, 472, 282, 482
Leyland 602, 604, 702, 704, 802, 804
Marshall 602, 604, 702, 704, 802, 804, 904XL

Original equipment manufacturers names and parts numbers are quoted for reference purposes only and are not intended to suggest that our replacement parts are made by the original equipment manufacturer.

Product images are for illustrative purposes only and may not always be an exact representation of the product.

Note:

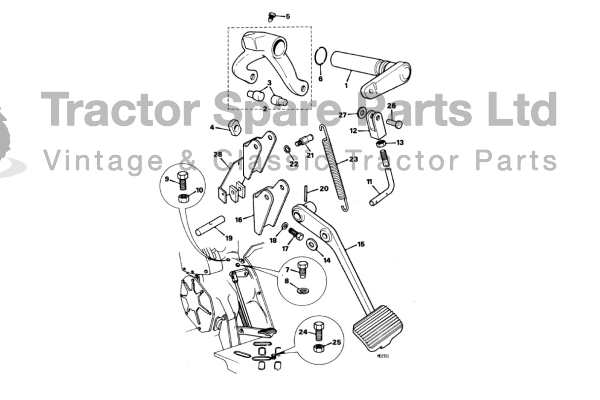

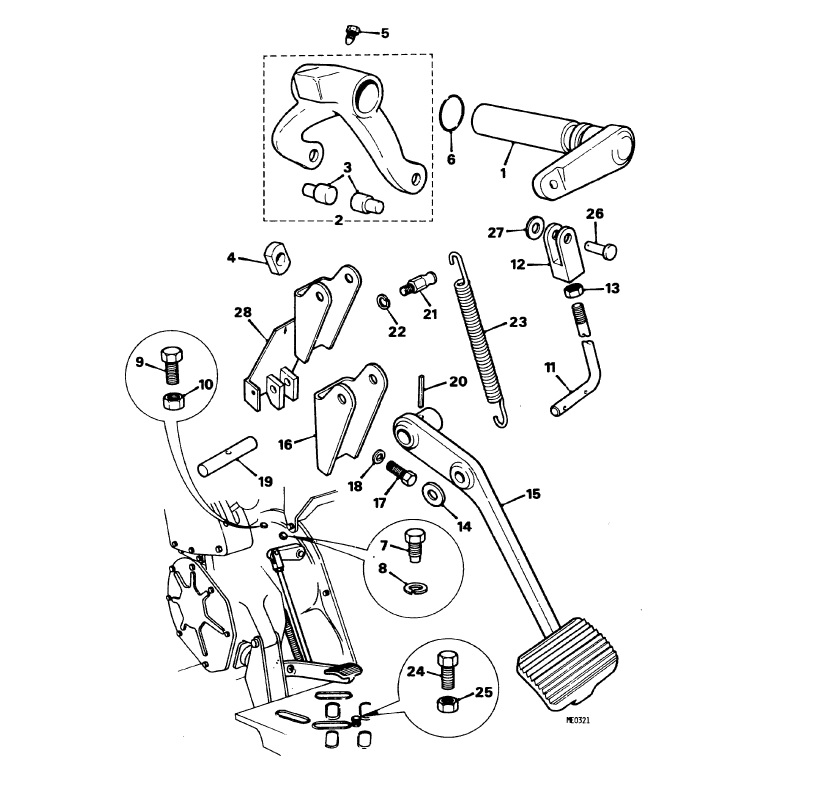

See item 6 in diagram for location in diff-lock:
For larger diagram TRS1216 press here
