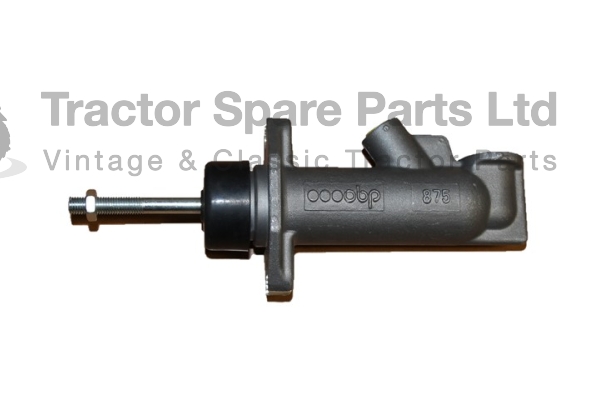

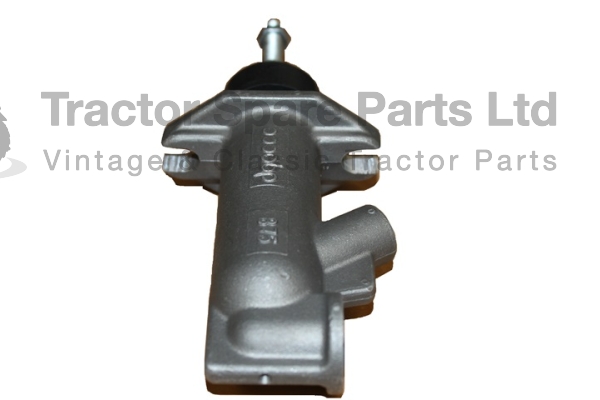

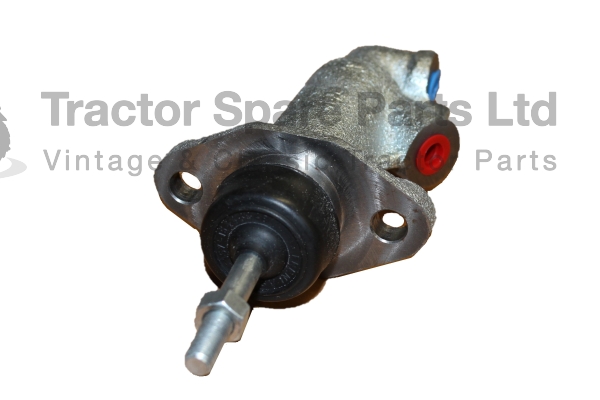

CTJ5430 - Master cylinder used for both the clutch and brakes. Located in the cab and attaches to the clutch and brake pedals via a fork and clevis pin.
Cylinder bore 0.875"
Fitted to the following tractors:
Leyland 245 (QM only), 262, 272, 282, 462, 472, 482
Leyland 285, 2100, 485, 4100
Leyland 502, 602, 702, 802, 604, 704, 804
Marshall 502, 602, 702, 802, 604, 704, 804, 904XL, 754, 854, 954
NOTE: This cylinder can be used as an alternative to CTJ3143 and CTJ5078 on the Leyland 285, 485, 2100, 4100 models.
NOTE: Seal kit AAU6540 does not fit this cylinder
Original equipment manufacturers names and parts numbers are quoted for reference purposes only and are not intended to suggest that our replacement parts are made by the original equipment manufacturer.
Product images are for illustrative purposes only and may not always be an exact representation of the product.
Original master cylinders are no longer available. These are an alternative cylinder, which fit in the same manner as the originals.
Important: Use with DOT 4 clutch and brake fluid.
Warning: For optimum results and safety, It is recommended that all work should be carried out by a suitably trained fitter/mechanic and worn units should be replaced by the new units. If it is decided to service a used component particular attention should be paid to the following. If in doubt or difficulty fit a new unit or seek professional help.
Warning: Clean brake parts with only Brake Cleaner or unused Brake Fluid as recommended by the vehicle manufacturer. Use only Brake Fluid recommended by the vehicle manufacturer in the Braking System. If in doubt always consult the vehicle handbook.
Diagram showing fitting and corresponding parts for the clutch fluid system (QM cab models only) CTJ5430
