Leyland Tractors

ATJ9463 - Stabiliser Assembly

  • Brand: Leyland Tractors
  • Condition: New
  • Part Number: ATJ9463
In Stock Out of Stock Awaiting
Usually Dispatched Next Working Day
£161.74 exc VAT

Need it delivering elsewhere? Click here

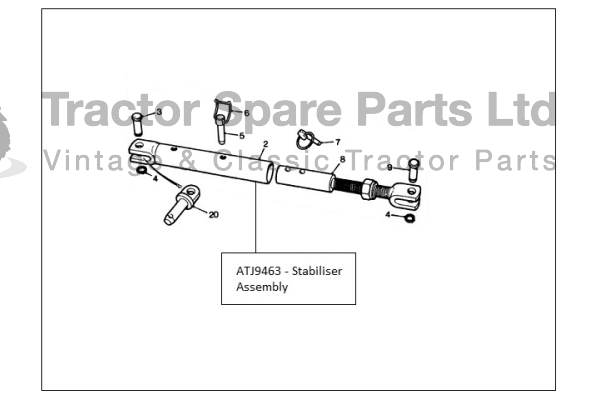

ATJ9463 - Complete stabiliser assembly for hydraulic lift linkage.

This assembly comprises the following parts:

ATJ6263 - 1 off - Front fork and tube (part 2 on diagram)
ATJ6267 - 2 off - Swivel pin (parts 3 & 9 on diagram)
CCN112 -  2 off - Circlip (parts 4 on diagram)
ATJ6268 - 1 off - Locking pin (part 5 on diagram) also listed as ATJ6270
ATJ6269 - 1 off - Clip for locking pin (part 6 on diagram) also listed as ATJ6270
NT7453 -  1 off - Retainer pin (part 7 on diagram)
ATJ6265 - 1 off - Rear fork and rod (part 8 on diagram)
ATJ6266 - 1 off - Eyebolt (part 20 on diagram)
NT7251 -  1 off - Link arm eye bolt (not on diagram)
NH612041 -1 off - Nut (not on diagram)
WL600121 - 1 off - Washer (not on diagram)

Fitted to the following tractors:
Nuffield 10/42, 10/60, 3/45, 4/65
Leyland 344, 384, 253, 255, 270, 245, 262, 462, 272, 472, 282, 482
Leyland 502, 602, 604, 702, 704, 802, 804
Marshall 502, 602, 604, 702, 704, 802, 804

Original equipment manufacturers names and parts numbers are quoted for reference purposes only and are not intended to suggest that our replacement parts are made by the original equipment manufacturer.

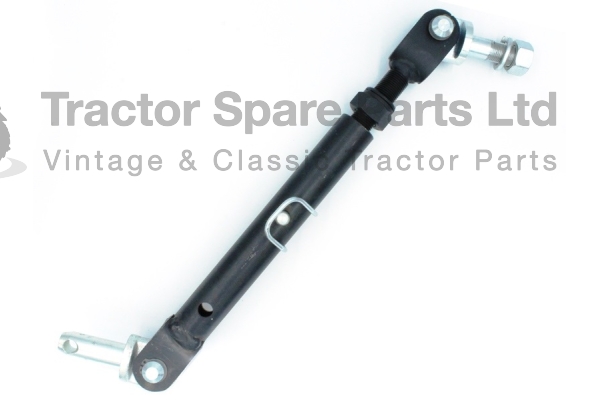

Product images are for illustrative purposes only and may not always be an exact representation of the product.

Note:

These are currently supplied in primer not painted as picture shows.
