96K570 - Piston & ring set (98mm)

£45.00 exc VAT

Need it delivering elsewhere? Click here

Delivery Information Returns Information

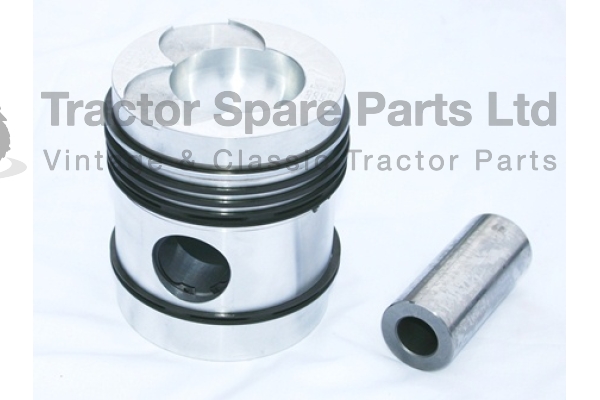

96K570 - Piston and ring set (5 ring piston set) fitted to the Leyland 4/98 engine and Leyland 6/98 engine. Part No 96K570 (piston) & AHM9014 (rings).
Old parts numbers 86K950, 86K949, 86K1259

We require your engine serial number in order to make sure that your Leyland 498 or 698 engine is fitted with this 5 ring piston, as later engines were fitted with a 4 ring piston, or even a 3 ring piston.

This piston may be fitted into a JCB, but often the bottom ring is not fitted.

If you are unsure about which piston you need please get in touch and we can help you.

Original equipment manufacturers names and parts numbers are quoted for reference purposes only and are not intended to suggest that our replacement parts are made by the original equipment manufacturer.

Product images are for illustrative purposes only and may not always be an exact representation of the product.

Note:

Technical Details:

Crown diameter 97.510 mm 3.839 in

Compression height 68.170 mm 2.684 in

Overall height 116.330 mm 4.58 in

Chamber diameter 56.030 mm 2.206 in

Chamber depth 24.790 mm 0.976 in

Piston pin diameter 34.925 mm 1.375 in

Number of rings 5

Compatible with:
