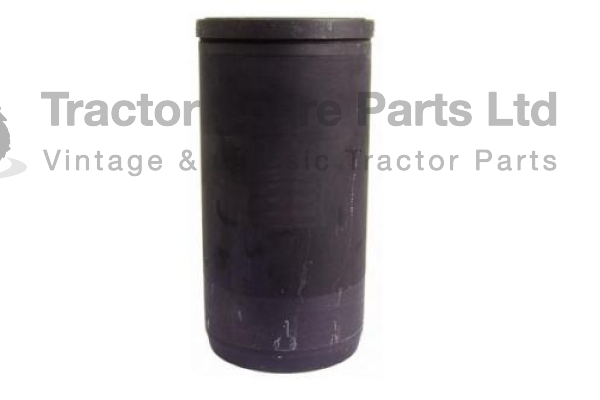

96K432 - Cylinder liner for the Leyland 4/98 and 6/98 engines.
Fitted to the following tractors:
Leyland 262, 272, 282, 462,472, 482, 285, 2100, 485, 4100
Leyland 602, 604, 702, 704, 802, 804
Marshall 602, 604, 702, 704, 802, 804
Bore size 98mm
Flange diameter 117.09mm
Flange height 8.90mm
Outside diameter where the liner seal contacts the liner 108.25mm
Overall height 218.30mm
Original equipment manufacturers names and parts numbers are quoted for reference purposes only and are not intended to suggest that our replacement parts are made by the original equipment manufacturer.
Product images are for illustrative purposes only and may not always be an exact representation of the product.

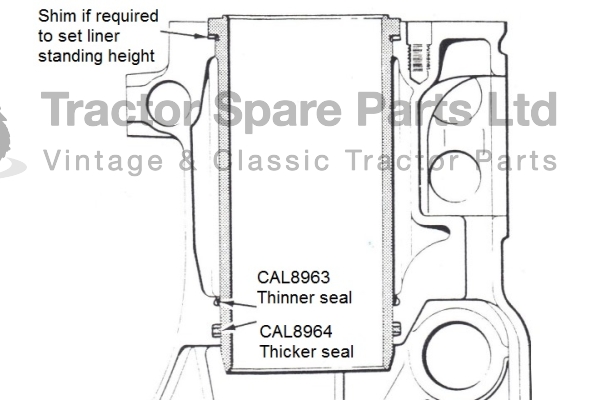

-Other parts to suit 96K432 liner:
Top seal ring CAL8963
Bottom seal ring CAL8964
Piston 96K570 (replaces 96K471)
Rings AHM9014 (replaces AHM9072)
-Use the following liner shims for this liner
89J88 (0.003")
89J89 (0.004")
89J90 (0.005")
Important always check liner sizes before ordering,
if unsure please ring us for advice.
