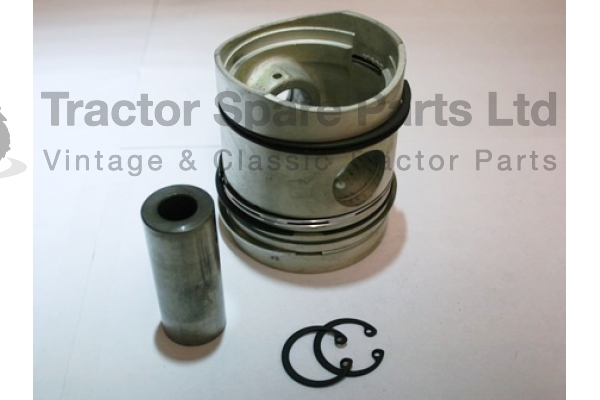

8G2611-40 - Set of 4 Leyland 1500D piston + 40" assembly complete with ring set for the Nuffield and Leyland tractors.
Note fits bore size 2.9145" to 2.9160" (74.03 to 74.06mm)
Piston ring fitted gap:
No. 1 compression ring       - 0.012" to 0.020" (0.30mm to 0.51mm)
No. 2 and 3 compression rings - 0.008" to 0.013" (0.20mm to 0.33mm)
No. 4 and 5 oil control rings   - 0.008" to 0.013" (0.20mm to 0.33mm)
Also fitted to:
BMC 1500 diesel engine
Thornycroft 90 and Thornycroft 90/2
Austin A60 Cambridge
Morris Ital 1.5
Morris Marina 1.5
Morris Oxford 1.5
Â
Original equipment manufacturers names and parts numbers are quoted for reference purposes only and are not intended to suggest that our replacement parts are made by the original equipment manufacturer.
Product images are for illustrative purposes only and may not always be an exact representation of the product.
