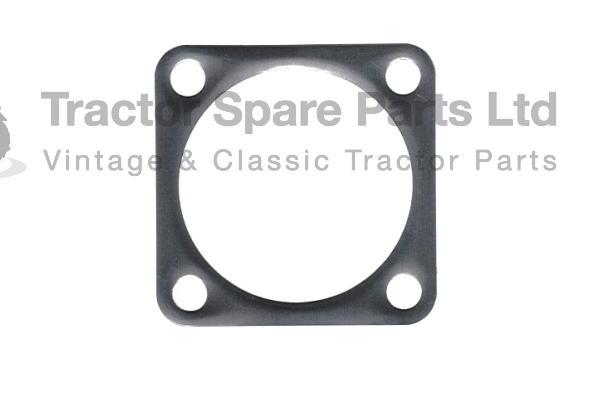

7H6031 Shim 0.005" - Steering box shim - fitted to the Lightweight Leyland and Nuffield tractors.
Hole centres 53mm, hole diameter 8.4mm, large hole through centre 57.5mm.
Note: Add shims between the outer tube and the housing, until the end float is eliminated in the steering column shaft.
Any combination of shim thickness can be used to achieve this (see 7H6000, 7H6032)
Fitted to the following tractors:
BMC Mini
Nuffield 4/25, 3/45, 4/65
Leyland 154, 344, 384, 253, 245, 255, 270, 262, 272
See items 17 and 8 on diagrams
See 7H6034 for gasket
Original equipment manufacturers names and parts numbers are quoted for reference purposes only and are not intended to suggest that our replacement parts are made by the original equipment manufacturer.
Product images are for illustrative purposes only and may not always be an exact representation of the product.
