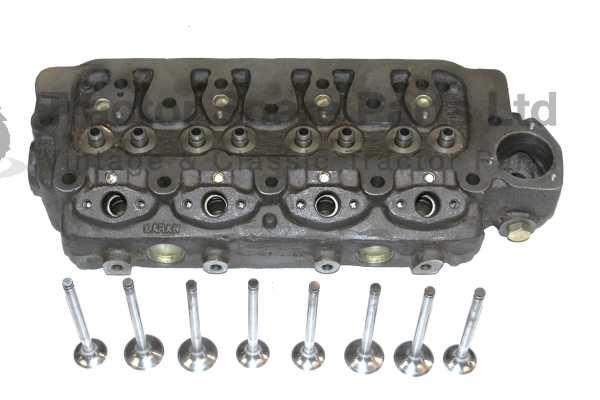

48G261 -Â Cylinder head with guides - Leyland 1500D
Cylinder head is supplied complete with 8 x 12B1339 guides, 4 x 62H61 inlet valves and 4 x 62H60 exhaust valves
Fitted to the following tractors:
Leyland 154
Nuffield 4/25
Used with 12H2117 - Valve cotter (pair) not supplied with the head.
We recommend purchasing 4 x 12H218 Heat shield and 4 x 12H219 Heat shield washer, when purchasing this product as the head is not supplied with these items. You can reuse them from your old cylinder head but they can be difficult to remove.
See also AG39 for glow plugs.
Thornycroft 90 and Thornycroft 90/2.
Original equipment manufacturers names and parts numbers are quoted for reference purposes only and are not intended to suggest that our replacement parts are made by the original equipment manufacturer.
Product images are for illustrative purposes only and may not always be an exact representation of the product.
Note: The early cylinder heads used 12H212 inlet valves and 12H213 exhaust valves which have a different length cotter.
