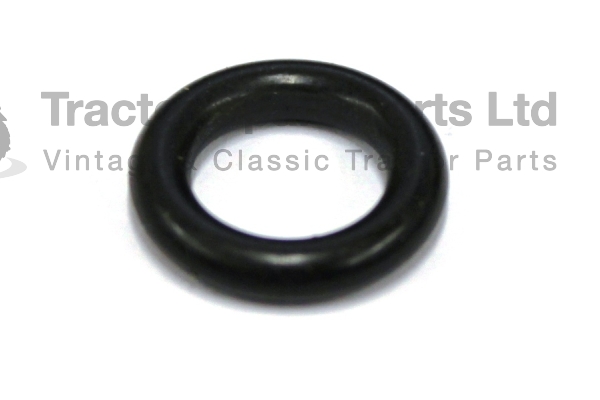

17H1173 - Filter canister seal

Need it delivering elsewhere? Click here

17H1173 - Seal, note this item is fitted in to 17H1172 collar at the end of the canister.

This seal is used in several filter canister housings used on the hydraulics and engine oil. It is used in filter canisters using the GFE104 and GFE102 filters which are used in Purolator or Lockheed filter housings.
It is used as a seal between the centre bolt and the sump on the canister.

Alternative part number is 508380 when on a Leyland 4/98 engine.

Used as hydraulic filter canister seal in the following tractors:
Nuffield 4DM
Leyland 344, 384, 255, 262, 462, 270, 272, 472, 282, 482
Leyland 502, 602, 604, 702, 704, 802, 804
Marshall 502, 602, 604, 702, 704, 802, 804

Used as an engine oil filter canister seal in the following engines and tractors:
BMC 2.6, 2.8, 3.4, 3.8 engines
Leyland 4/98 engine
Nuffield 4DM
Leyland 344, 384, 255, 262, 462, 270, 272, 472, 282, 482
Leyland 602, 604, 702, 704, 802, 804
Marshall 602, 604, 702, 704, 802, 804

For additional filter canister parts please see the following:
7H25 - spring
17H1172 - collar
27H2573 - circlip
